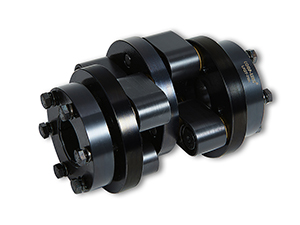

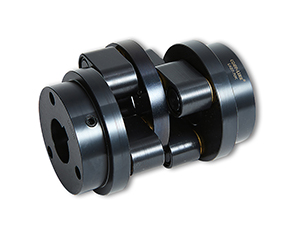

Flang Connection Coupling
* Chain couplings use different shaft centers and the crank motion of a link.
* Reliably transmits the drive-side energy to the driven side together with rotation speed and torque.
* Can translate shafts over a wide range while rotating.
* Flange connection.

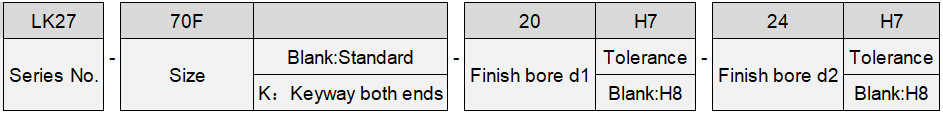

Ordering Information

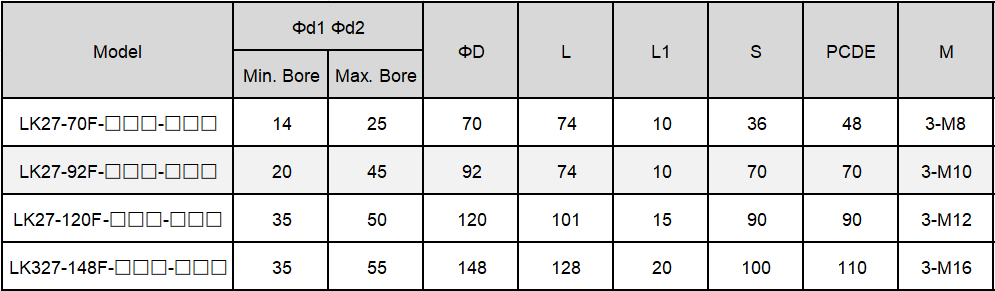

Dimensions(mm)

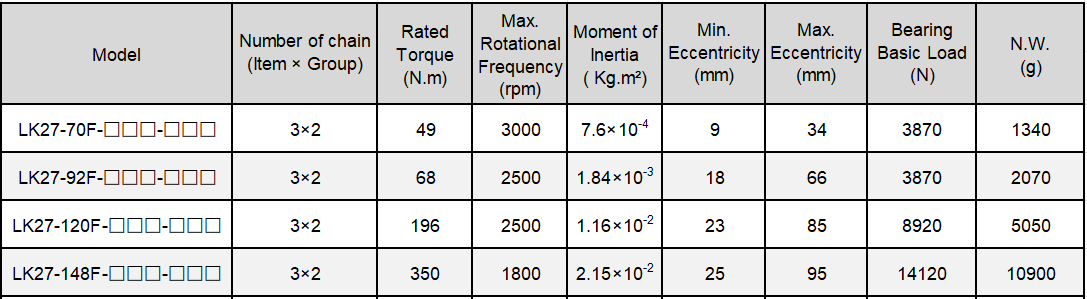

Specifications(mm)
Downloads
Here you will find order examples and operating instructions for download in PDF format.
LK27 Schmidt Coupling (Flange Type).pdf
Other Schmidt Coupling
|
|
Contact Us
COUP-LINK, Guangzhou LINK Automation Equipment Co.,Ltd.
Add.: 2606-2609 Room, B Building, Feng Xing Square, No.242 Tian He Road, Guangzhou City, Guangdong Province, China.
Tel.:+86-20-38395380/81/82/83
Fax.:+86-20-38395480
Email,:link@gzlink.com
