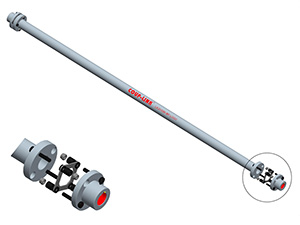

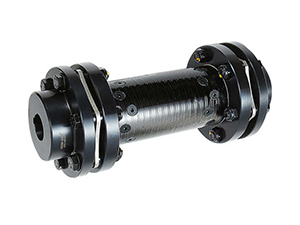

Long Span Coupling (Spring Plate)
* Using keyway or locking assemblies connect,plate springs coupling.
* Zero backlash.
* Excellent response and high torque capacity.
* Ldentical clockwise and anticlockwise rotational characteristics.
* Stainless steel plate springs absorb parallel,angular misalignments and shaft end-play.
* Using in long span drive.

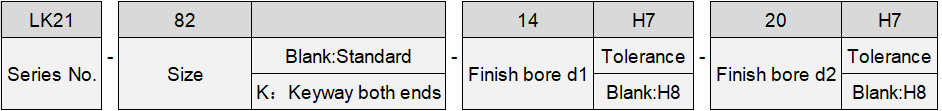

Ordering Information

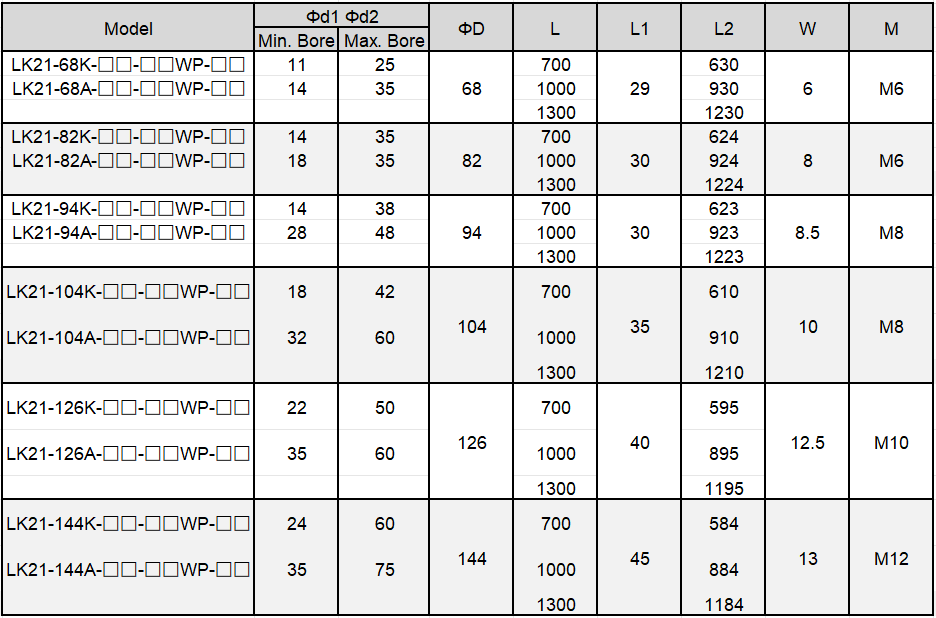

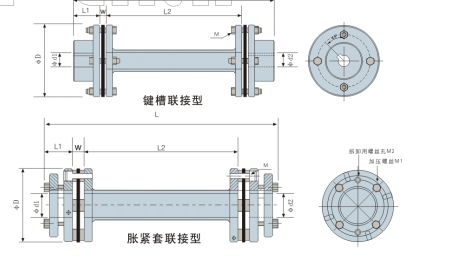

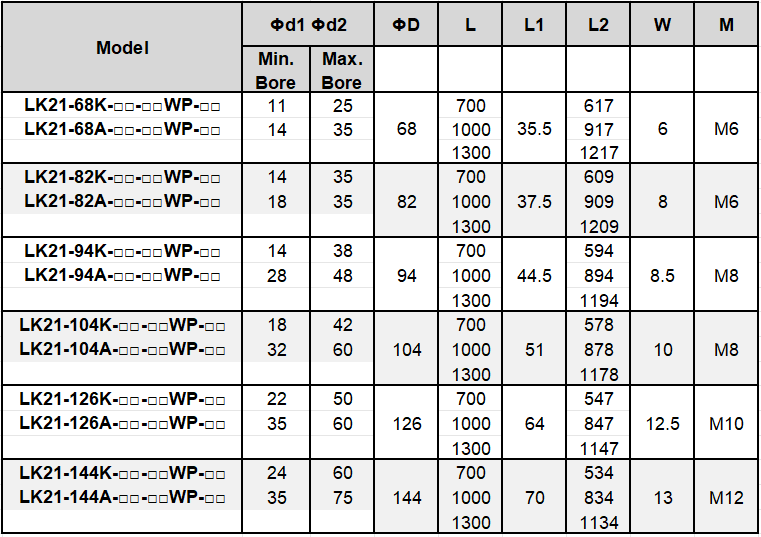

Dimensions(mm)

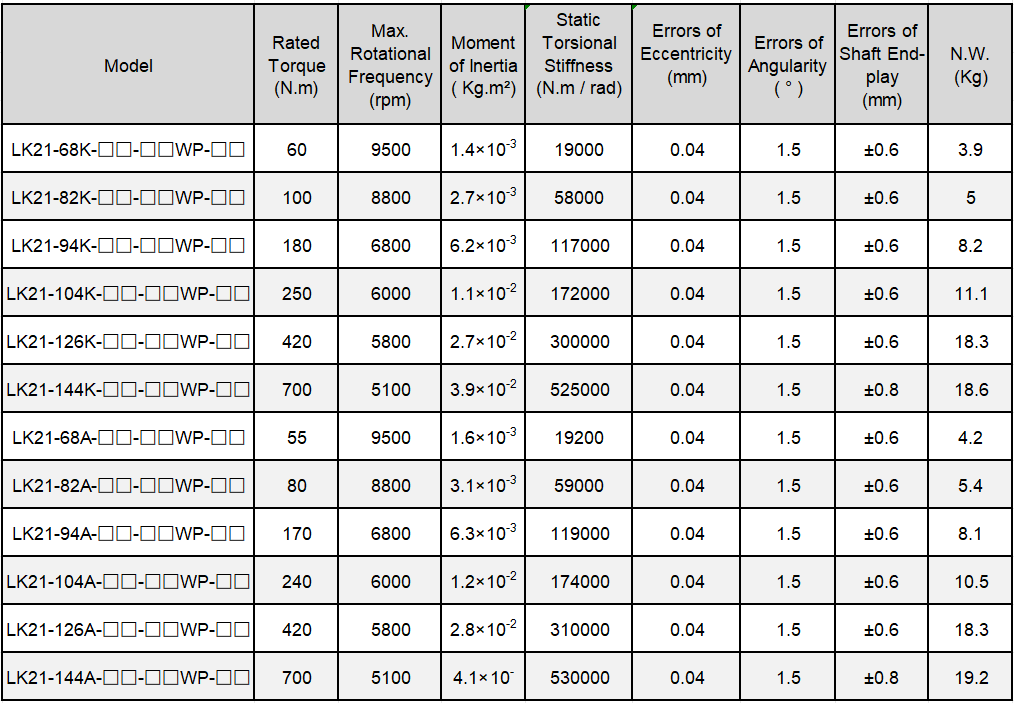

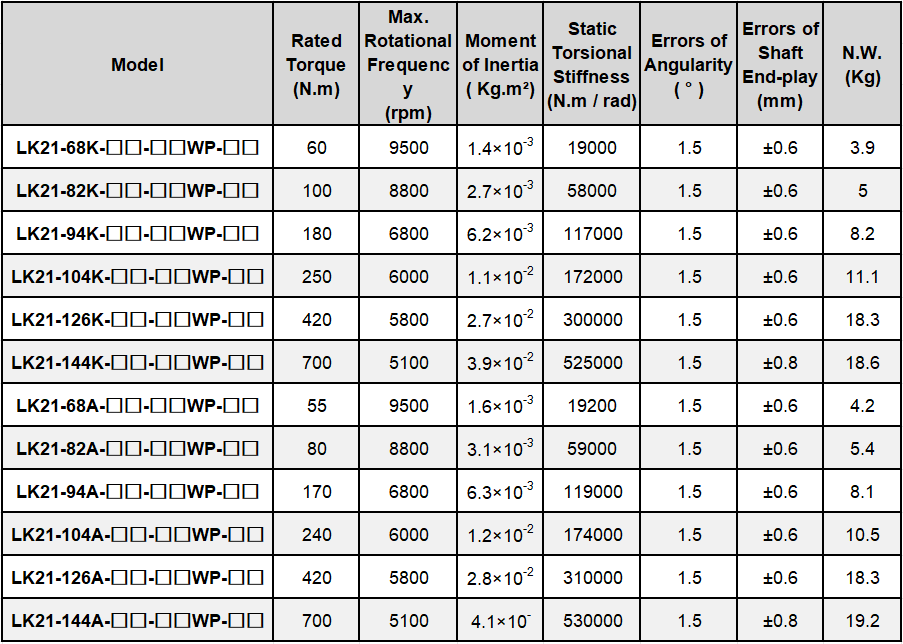

Specifications(mm)
Downloads
Here you will find order examples and operating instructions for download in PDF format.
LK21 Long Span Disc Coupling.pdf

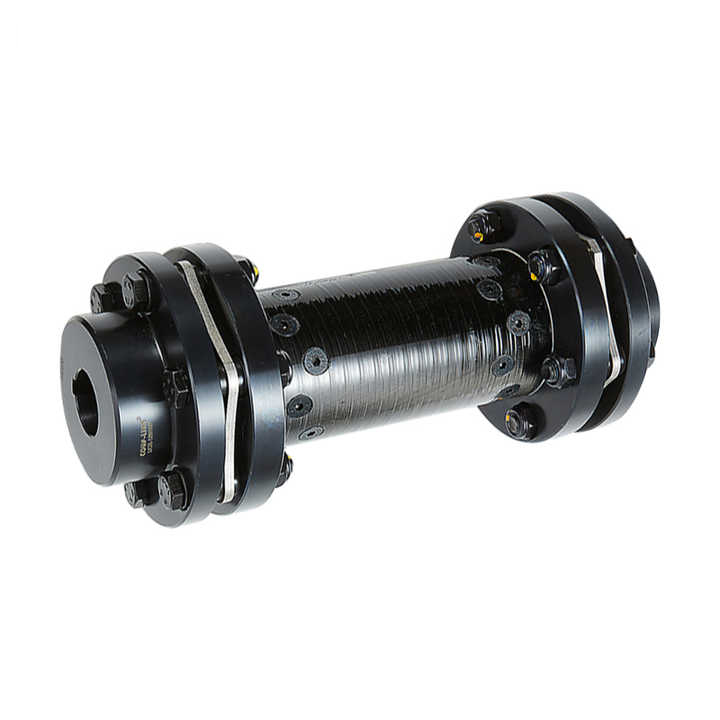

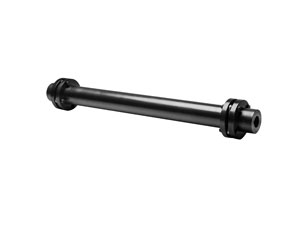

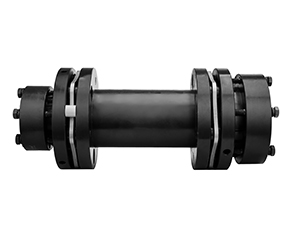

Other Long Span Coupling
|
|
